John Deere 7350

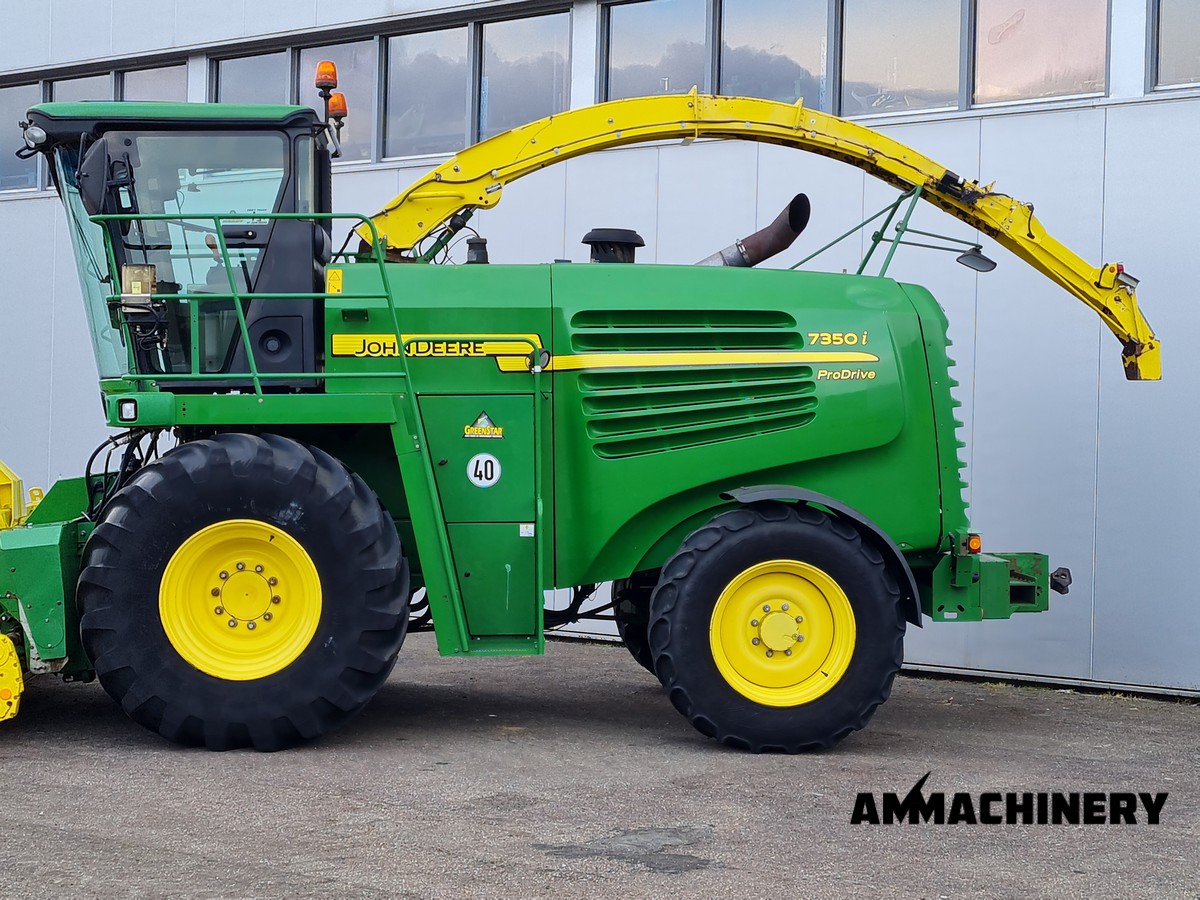

2012 John Deere 7350 4WD with Prodrive transmission including Kemper 360 Plus 8 row corn header.

John Deere 7350

2012 John Deere 7350 4WD with Prodrive transmission including Kemper 360 Plus 8 row corn header.

Price on request

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Stock Number 25017-30
Brand John Deere
Model 7350
Series 7000
Engine hours 4429
Drum hours 2927
Attr 2 or 4 wheel drive 4 WD
Engine Brand John Deere
Engine type L6
Engine Power HP 457
Engine Power (KW) 352
Front Tires Brand Michelin
Rear Tires Brand Continental
Front Tires Size 800/65R32
Rear Tires Size 540/65R30
Front Tires profile 65
Rear Tires Profile 43
Emission Level Tier 3

Knife drum 56
Amount of knives installed 56

Kernel processor type Saw tooth

Options

Auto lubrication Yes
Spout extension Yes
Automatic spout rotation Yes
Rear weights Yes
Trailer hitch Yes
Greenstar ready Yes
Autopilot module prepared Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Refrigurator Yes
Side window wipers Yes
Partly duraline wear kit Yes
LED lights Yes
Sunblinds window(s) Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Machine documents

Harvester Guard ® Inspection certificate

Image gallery

Load more images >>>

Innovation
Knowledge
Quality
Transparent

AM: Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 25 °C
Cooling liquid level V
Engine oil level X*
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level V
Right hand rear end drive oil level V
Upper feedrolls gearbox oil level X*
Gearbox oil level X*
Brake fluid V

Knive drum

Knife drum 56
Amount of knives installed 56
Knife condition 89%
Knife holders V
Knife drum configuration Corn
Shearbar front surface 2
Shearbar rear surface 2
Shearbar active position Rear
Left hand Knife drum bearing X*
Right hand Knife drum bearing X*
Knife drum bottom plate 4
Knife drum rear plate 1
Knife drum front cover 1
Knife drum stone cover 1
Knife drum chain coupler X*
Sharpening stone 2
Left hand lift cilinder X*
Right hand lift cilinder X*

Kernal processor

Gras chute liner 1
Corn shute liner 1
Kernel Processor rolls 3
Kernel Processor upper roll 3
Kernel Processor lowwer roll 2
Kernel processor type Saw tooth
Kernel Processor drive belt 1
Kernel Processor drive tensioner bearings V
Kernel Processor drive idler roller V
Kernel processor belt tensioner rolls V
Kernel Processor housing 3
Tensioner springs gap adjustment V
Wear plates 2

Feedrolls

Upper front feedroll 3
Upper front feedroll wear strips 3
Upper rear feedroll 1
Metal detector roll 3
Smooth roll 3
Smooth roller chain coupler V
Smooth roll scraper 2
Upper front feedroller left hand bearing V
Upper rear feedroller left hand bearing X*
Upper rear feedroller right hand bearing X*
Metal detector roll left hand bearing V
Metal detector roll right hand bearing V
Smooth roll left hand bearing X*
Smooth roll right hand bearing X*
Upper feedroller arm bushing V
Feeder housing wear plates 1
Upper feedrolls drive shaft V
Upper feedrolls tension springs V
Upper feedrolls arm Bump stops X*
Loc gearbox X*
Gearbox upper feedrolls X*
Metal detector roll drive shaft V

Corn cave

Corn cave liner 3
Corn cave top liner 2
Corn cave door 3

Blower

Blower paddles 37%
Blower liner 3
Blower housing V
Left hand blower bearing V
Right hand blower bearing X*

Transition housing

Transition housing 3
Transition liners 1

Spout

Spout turnable wear shims 3
Spout swivel tube 2
Spout complete housing 2
Spout front liner 1
Spout middle liner 3
Spout rear liner 3
Spout side liners 3
Spout extention 2
Spout extention liner 3
Inner Spout deflector 3
Outer Spout deflector 3
Spout deflector liners 3

Engine

Dry engine X*
Waterpump bearings V
Engine belting V
Engine belt tensitioners V
Exhaust system X*
Engine mounting V
Airfilters X*
Rotary air screen V
Rotary air screen rollers N.A.
Cleaner cooling package V
Engine belting idler roller V
Rotary air screen belt tensioner roller X*
Rotary air screen belt X*
Rotary screen fan drive belt V
Rotary screen fan drive belt tensioner X*

Main drive

Main clutch 3
Main drive belt 2
Main belt tensioner bearings V

Operators station

Front window V
Rear window V
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors X*
Joystick V
Armrest control panel V
Steering wheel adjustment V
Front window wiper V
Rear window wiper blade N.A.
Side window wipers blade V
Cab air filter X*
Seat X*

Machine body

Front cover V
Left hand cover V
Right hand cover X*
Rear cover V

Functional test

Engine oil pressure low idle cold 3.5
Engine oil pressure high idle cold 4.5
Engine oil pressure low idle operating temperature 2
Engine oil pressure high idle operating temperature 3.5
Hydrostatic drive neutral V
Transmission shifting V
4WD working V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube X*
Length of cutt adjustment V
Header speed adjustment V
Header height control V
Header Lateral Tilt - if applicable N.A.
Front hydraulics X*
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system X*
Shearbar adjustment X*
Cutterhead reverser V
Kernel Processor gap adjustment V
Airconditioning cold X*
Cab heating V
Electrical functions cabin V
Camera(s) N.A.
Radio X*
Road & Working Lights X*
Free of error codes X*
