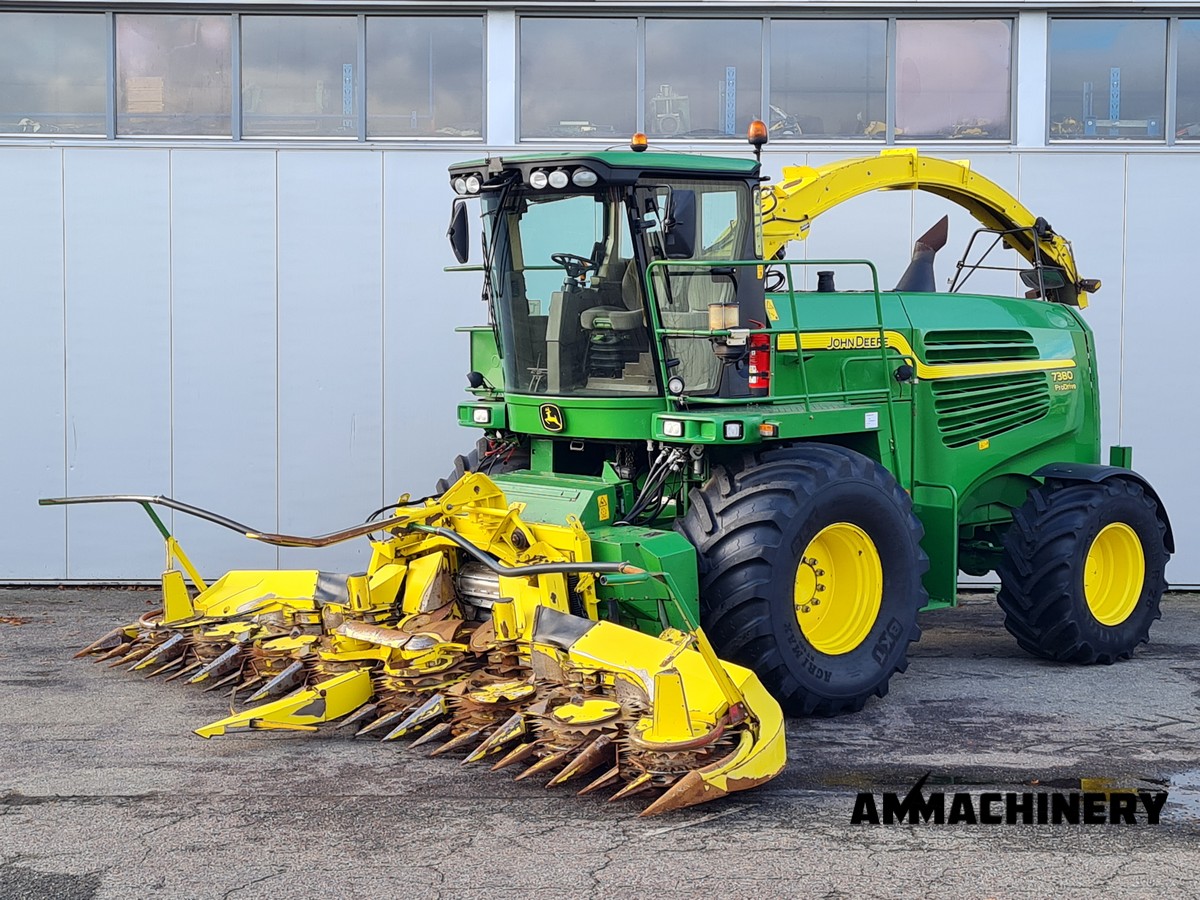

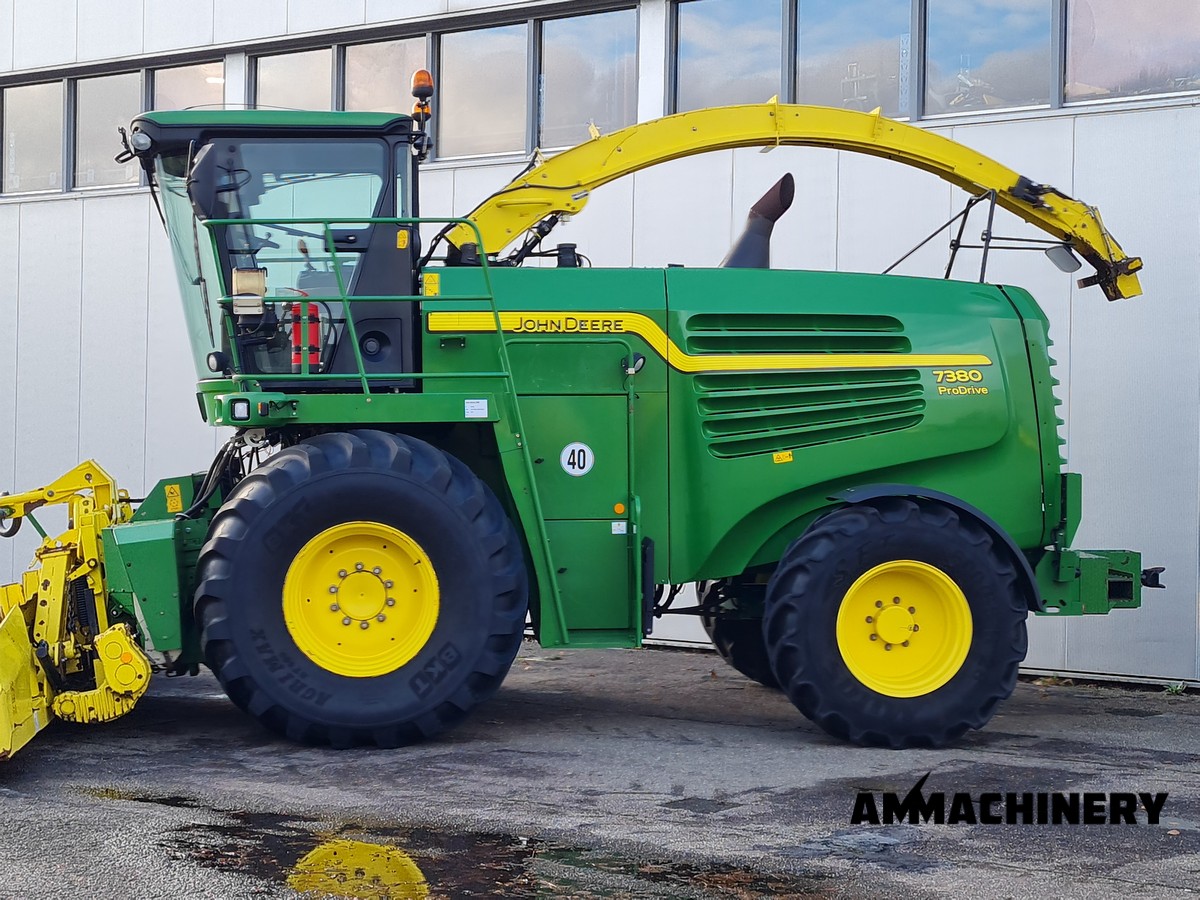

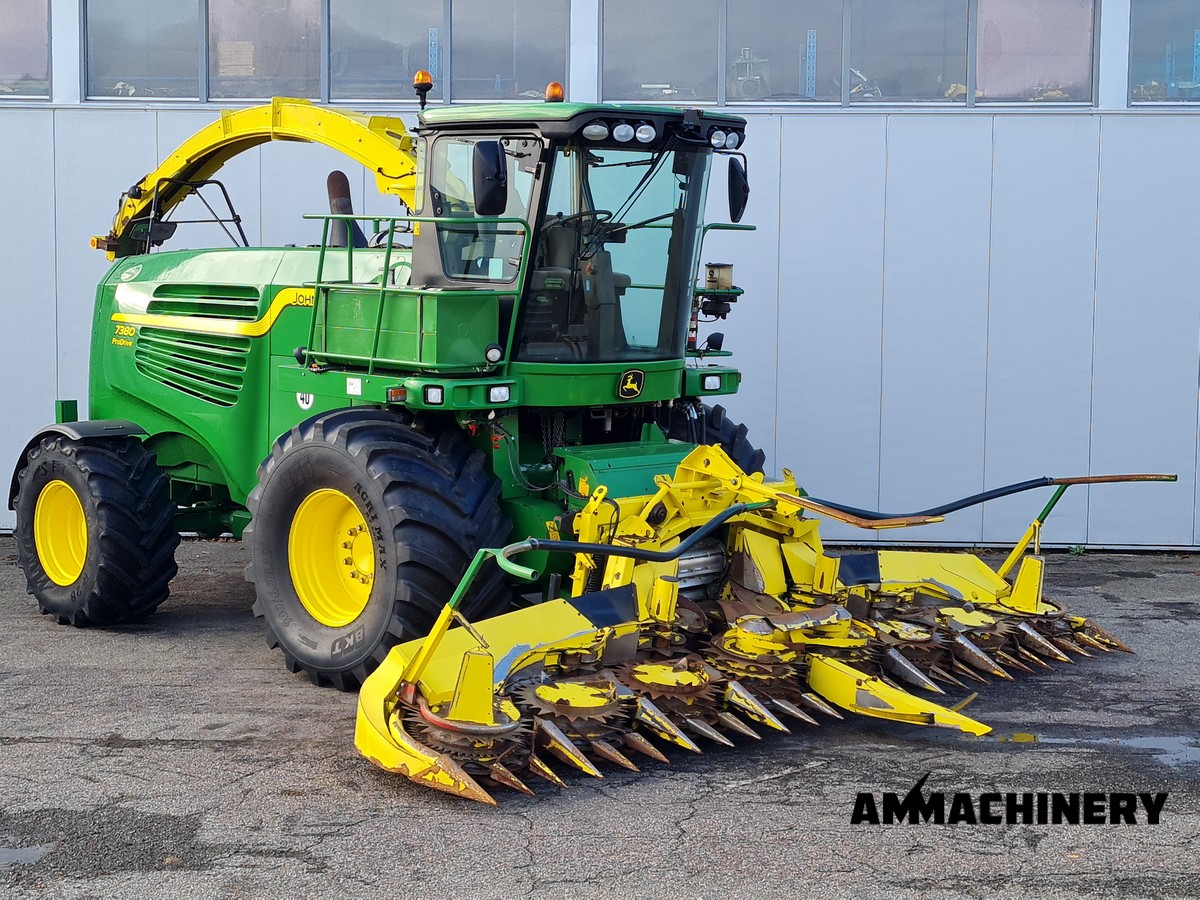

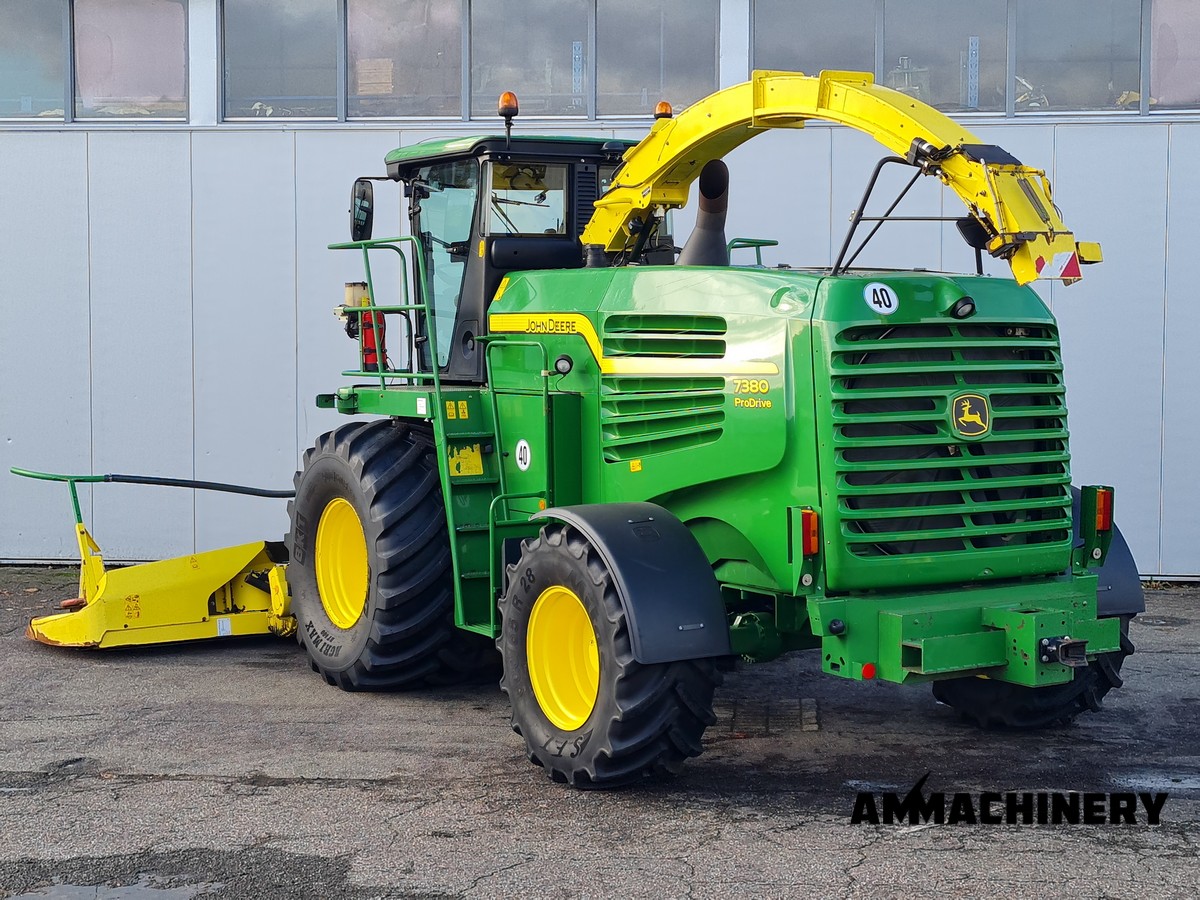

John Deere 7380

Price on request

#24096-30

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Stock Number 24096-30
Brand John Deere
Model 7380
Year of manufacture 2014
Engine hours 3400
Road speed (km/h) 40
Drum hours 2413
Attr 2 or 4 wheel drive 4 WD
Engine Brand John Deere
Engine type L6
Engine Power HP 490
Engine Power (KW) 360
Front Tires Brand BKT
Rear Tires Brand Mitas
Front Tires Size 900/60R32
Rear Tires Size 600/65R28
Front Tires profile 60
Rear Tires Profile 80
Emission Level Tier 3

Knife drum 56
Amount of knives installed 56

Kernel processor type Standard

Options

Auto lubrication Yes
Automatic spout rotation Yes
Spout camera Yes
Rear weights Yes
Trailer hitch Yes
NIR sensor cabling Yes
Autopilot module prepared Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Side window wipers Yes
Dumpkit Yes
LED lights Yes
Blue-tooth phone device Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Machine documents

AMMachinery inspection certificate

Image gallery

Load more images >>>

Innovation
Knowledge
Quality
Transparent

AM:Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 30 °C
Cooling liquid level V
Engine oil level X*
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level X*
Right hand rear end drive oil level X*
Upper feedrolls gearbox oil level X*
Gearbox oil level V
Brake fluid N.A.

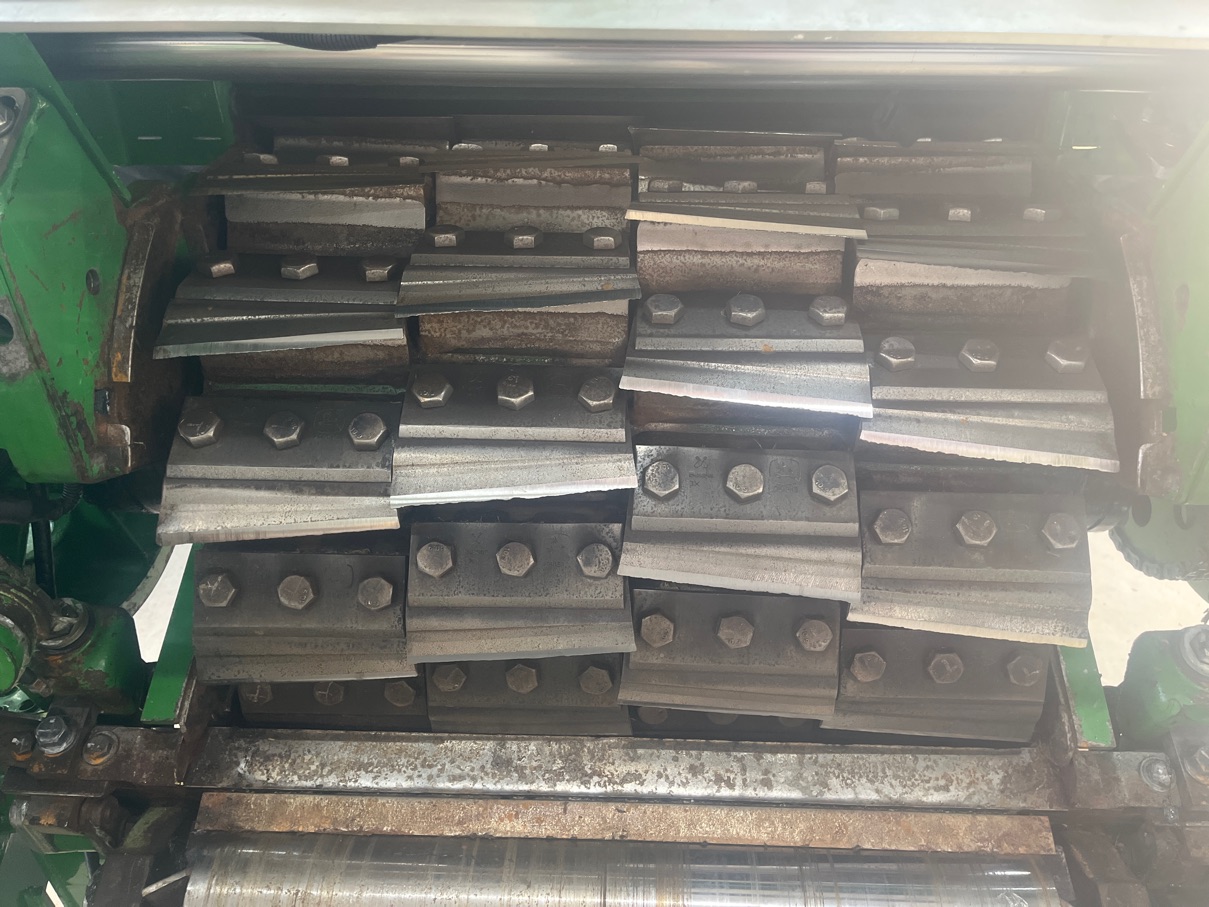

Condition Knive drum

Knife drum 56
Amount of knives installed 56
Knife condition 75%
Knife holders V
Knife drum configuration Corn
Shearbar front surface 1
Shearbar rear surface 1
Shearbar active position Front
Left hand Knife drum bearing V
Right hand Knife drum bearing V
Knife drum bottom plate 3
Knife drum rear plate 3
Knife drum front cover 3
Knife drum stone cover 3
Knife drum chain coupler V
Sharpening stone 1
Left hand lift cilinder X*
Right hand lift cilinder V

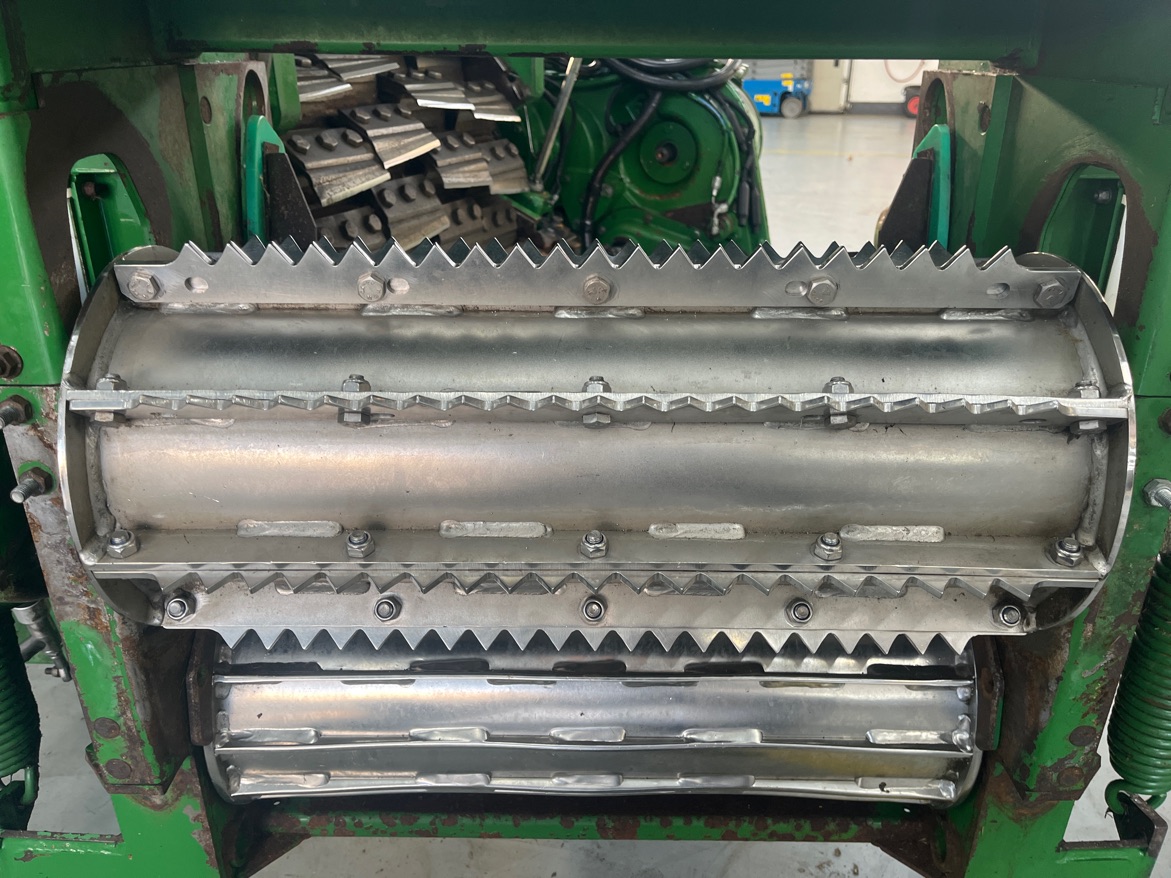

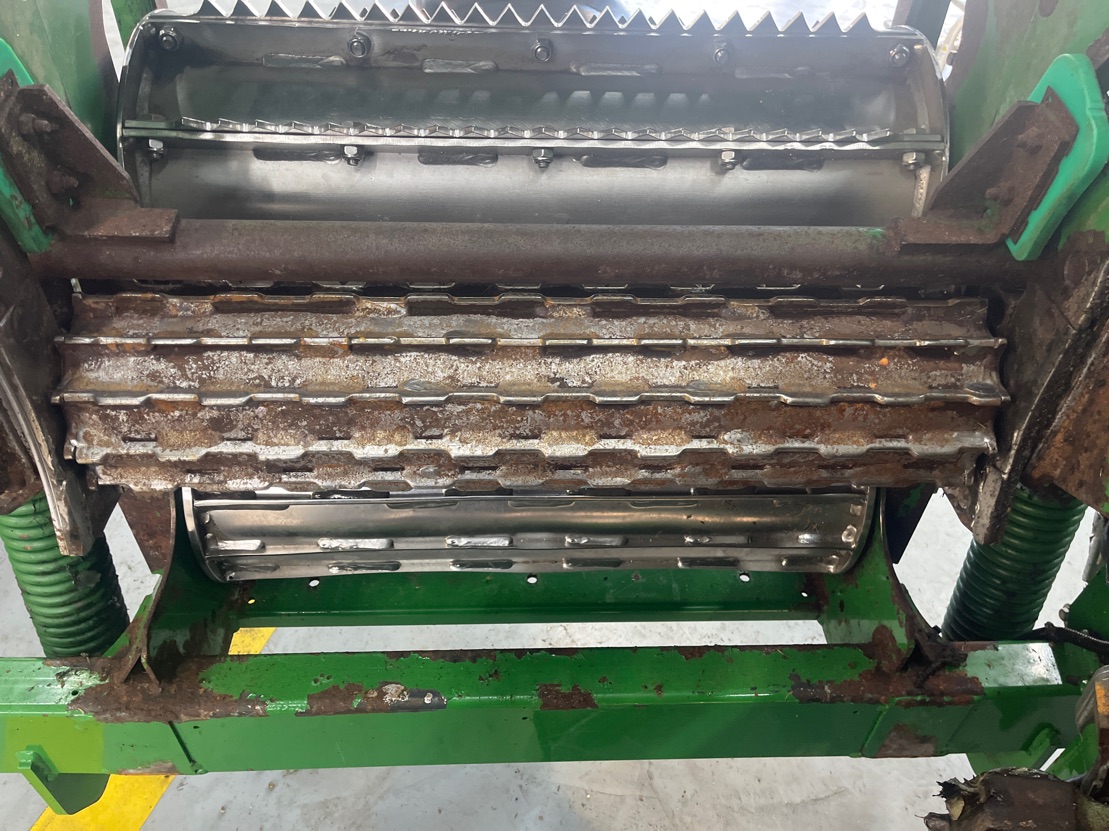

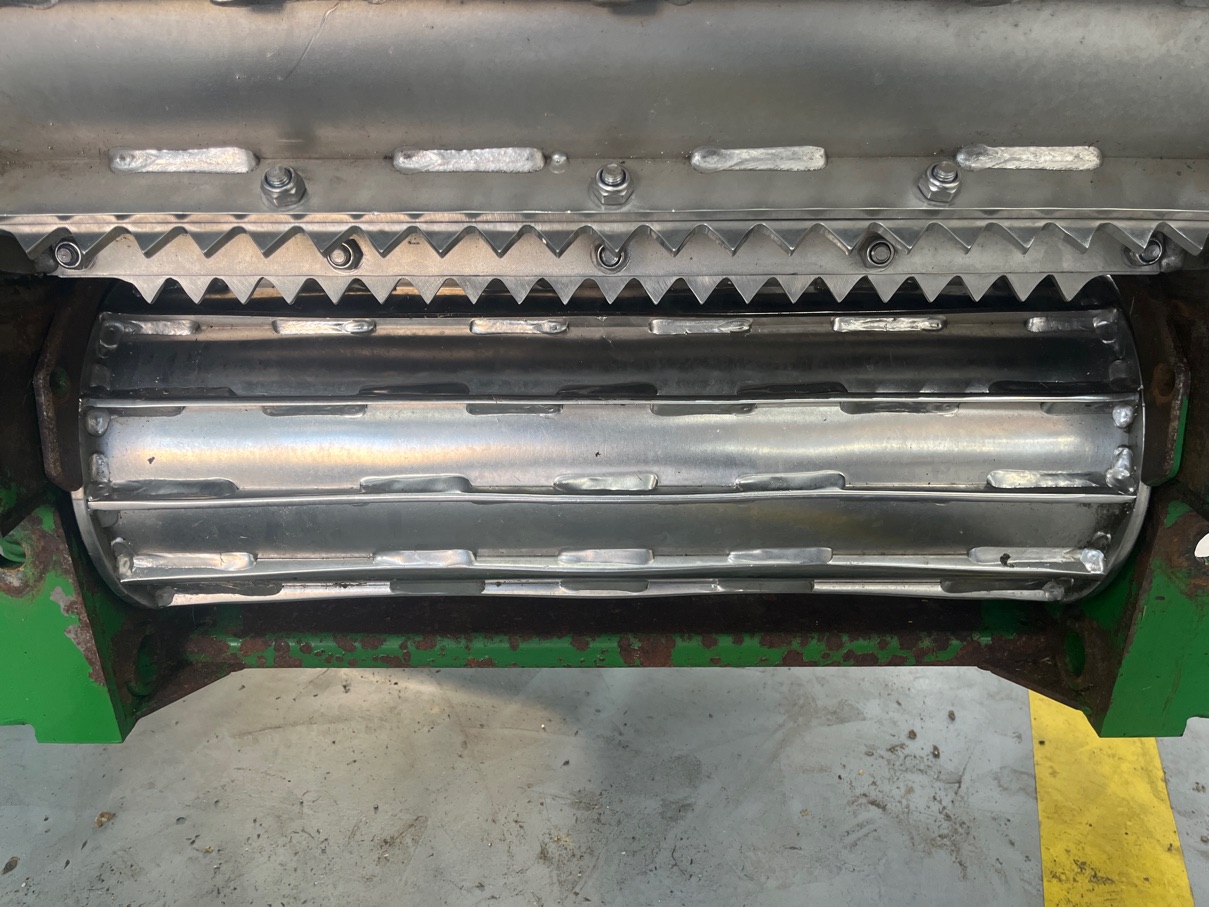

Kernal processor

Gras chute liner 3
Corn shute liner 3
Kernel Processor rolls 3
Kernel Processor upper roll 3
Kernel Processor lowwer roll 3
Kernel processor type Standard
Kernel Processor drive belt 3
Kernel Processor drive tensioner bearings V
Kernel Processor drive idler roller V
Kernel processor belt tensioner rolls V
Kernel Processor housing 3
Tensioner springs gap adjustment V
Wear plates 2

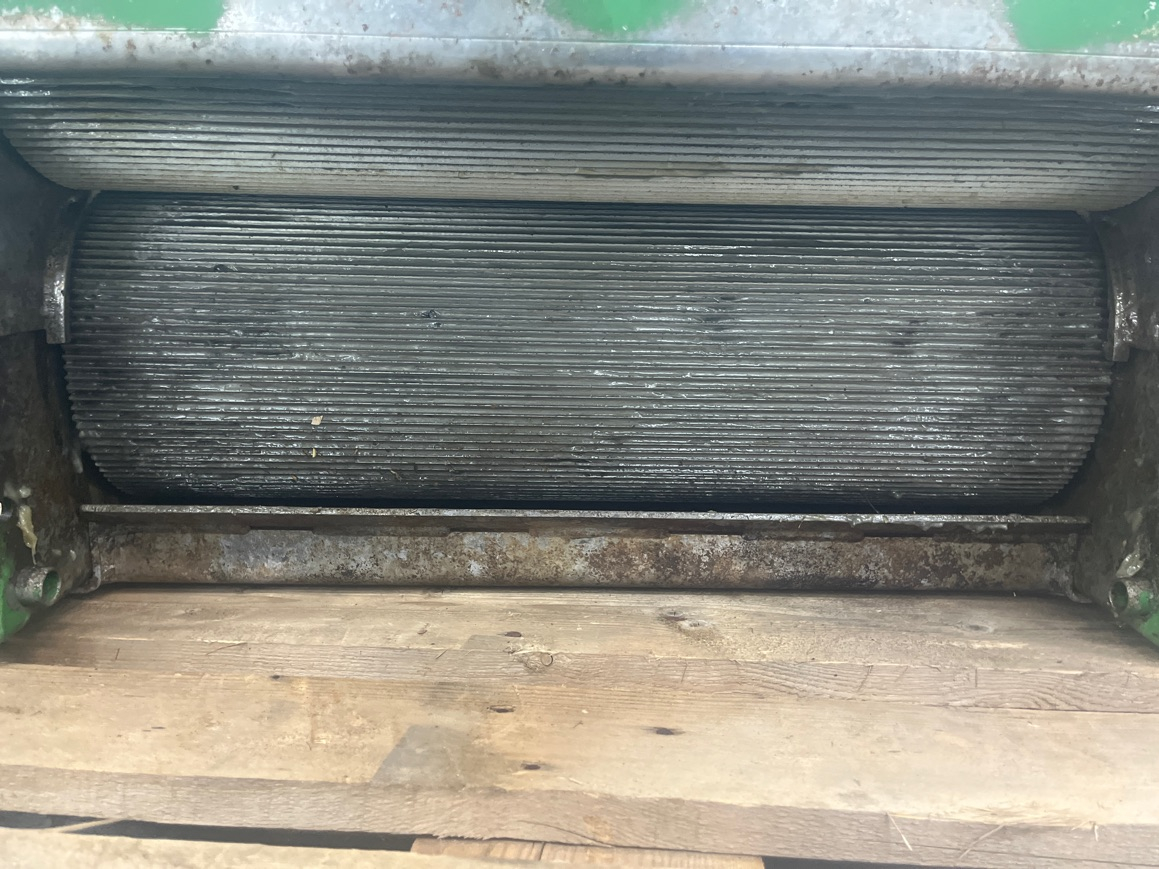

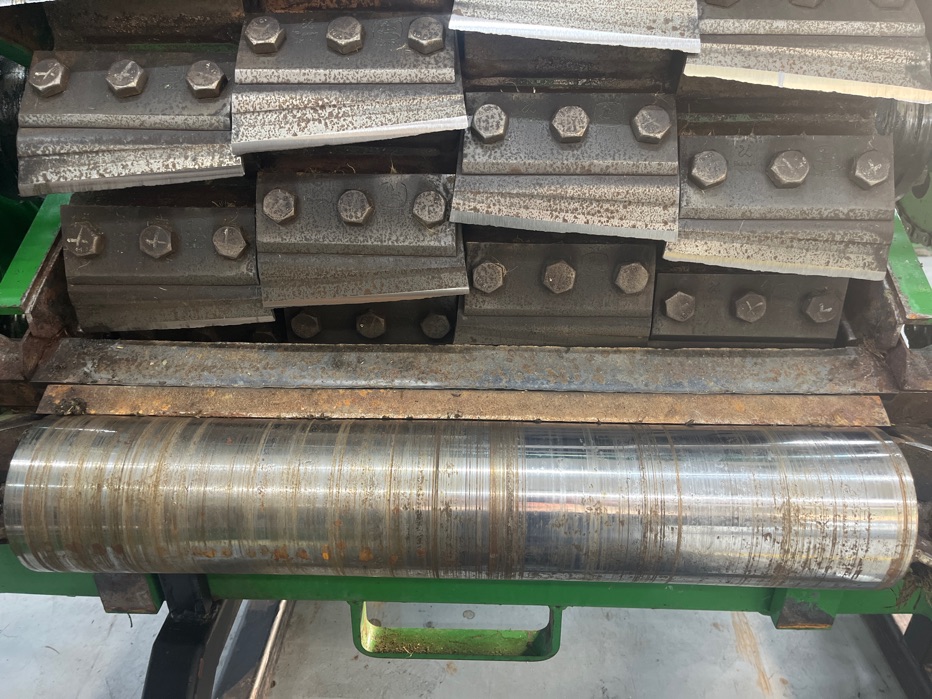

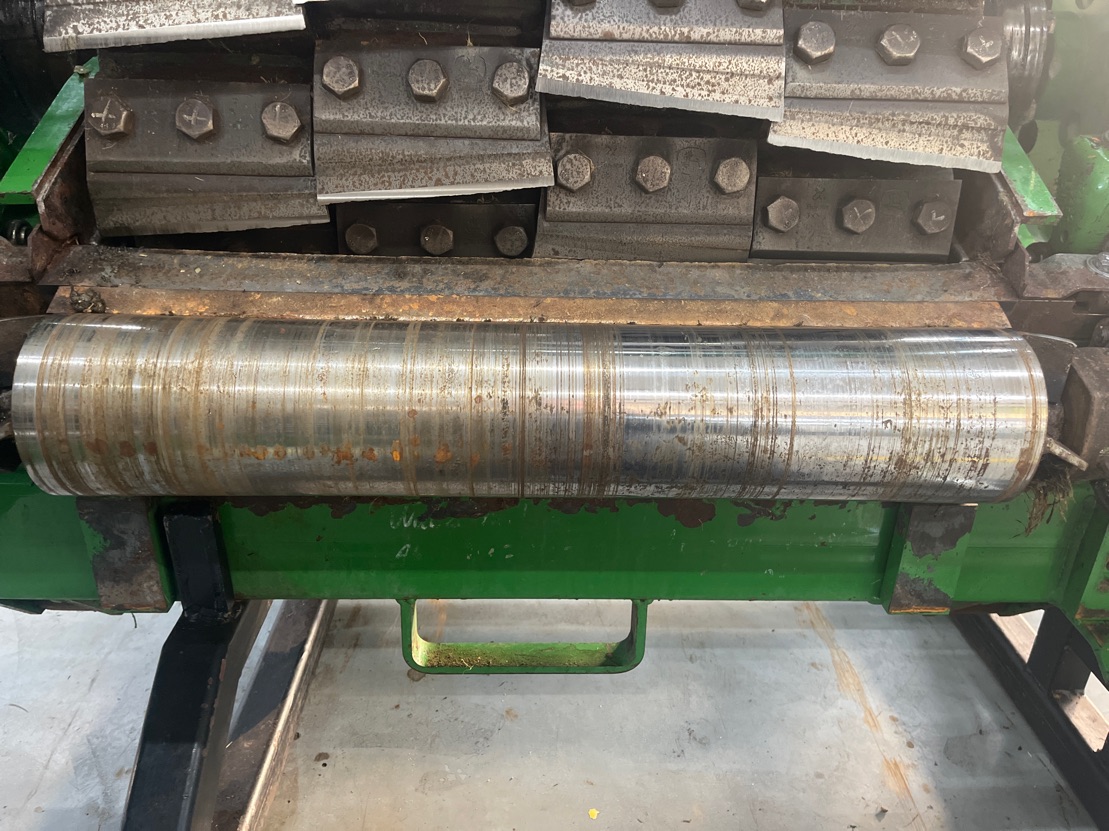

Feedrolls

Upper front feedroll 3
Upper front feedroll wear strips 4
Upper rear feedroll 2
Metal detector roll 2
Smooth roll 2
Smooth roller chain coupler V
Smooth roll scraper 2
Upper front feedroller left hand bearing V
Upper rear feedroller left hand bearing V
Upper rear feedroller right hand bearing V
Metal detector roll left hand bearing X*
Metal detector roll right hand bearing V
Smooth roll left hand bearing V
Smooth roll right hand bearing V
Upper feedroller arm bushing V
Feeder housing wear plates 3
Upper feedrolls drive shaft V
Upper feedrolls tension springs V
Upper feedrolls arm Bump stops V
Loc gearbox V
Gearbox upper feedrolls X*
Metal detector roll drive shaft V

Corn cave

Corn cave liner 3
Corn cave top liner 1
Corn cave door 3

Blower

Blower paddles 20%
Blower liner 3
Blower housing V
Left hand blower bearing X*
Right hand blower bearing X*

Transition housing

Transition housing 3
Transition liners 3

Spout

Spout turnable wear shims 3
Spout swivel tube 3
Spout complete housing 3
Spout front liner 4
Spout middle liner 3
Spout rear liner 4
Spout side liners 3
Inner Spout deflector 3
Outer Spout deflector 3

Engine

Dry engine V
Waterpump bearings V
Engine belting X*
Engine belt tensitioners V
Exhaust system V
Engine mounting V
Airfilters X*
Rotary air screen V
Rotary air screen rollers N.A.
Cleaner cooling package X*
Engine belting idler roller V
Rotary air screen belt tensioner roller V
Rotary air screen belt V
Rotary screen fan drive belt V
Rotary screen fan drive belt tensioner X*

Operational test Main drive

Main clutch 3
Main drive belt 3
Main belt tensioner bearings V

Drive train

Front drive shaft's and coupler's V
Tires condition V
Rear axle stub axle V
Rear axle ball joint V
Steering cylinder V

Operators station

Front window V
Rear window V
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors V
Joystick V
Armrest control panel V
Steering wheel adjustment V
Front window wiper X*
Rear window wiper blade N.A.
Side window wipers blade V
Cab air filter X*
Seat V

Machine body

Front cover V
Left hand cover V
Right hand cover V
Rear cover V

Electrical

Head lights V
Rear lights V
Brake lights V
Turn signal/hazard lights V
Rotary Beacon V
Dome lights V
Cab upper front work lights V
Cab side work lights V
Fender work lights V
Upper rear work lights V
Lower rear work lights N.A.
Spout work lights V
Fuel gauge V

Functional test

Engine oil pressure low idle cold 4
Engine oil pressure high idle cold 5.5
Engine oil pressure low idle operating temperature 3.8
Engine oil pressure high idle operating temperature 5.3
Hydrostatic drive neutral V
Transmission shifting V
4WD working V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube V
Length of cutt adjustment V
Header speed adjustment V
Header height control V
Header Lateral Tilt - if applicable N.A.
Front hydraulics V
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system V
Shearbar adjustment V
Cutterhead reverser V
Kernel Processor gap adjustment V
Airconditioning cold X*
Cab heating V
Electrical functions cabin V
Camera(s) V
Radio V
Road & Working Lights V
Free of error codes V

Header

Stocknumber 24042
Brand Kemper
Model 360 plus
Amount of rows 8
Working width (cm) 6 meter
Autosteer sensor V
Header lateral tilt V
Header height control sensors N.A.
Cutting knives 2
Drum bearings V
Cleaners X*
Drums V
Drum cleaners / scrapers V
knife discs V
Drive shaft V
Drive line couplers V
Drive chains and belts N.A.
Crop dividers V
Oil levels X*
Down corn augers N.A.
Ground skid plates V
Fold cilinders V
Hydraulic hoses/lines V
Transport accident prevention N.A.
Support wheel(s) N.A.
Support legs V
Wearplates X*
